100k pot for fender deluxe jazz mid boost

[thefyst]

Hi All,

Im having trouble sourcing a part. I need a [font="Verdana, Arial"][size="2"][font="Verdana, Arial"][size="-1"][font="Verdana, Arial"][size="2"]100K B CTR/CTS/DTNT pot, the fender part number is [font="Verdana, Arial"][size="2"][font="Verdana, Arial"][size="-1"][font="Verdana, Arial"][size="2"][b]0049443000.[/b][/size][/font][/size][/font][/size][/font][/size][/font][/size][/font][/size][/font]

if you know of anywhere i can get one of these without having to have it shipped from the USA or even a non-fender alternative i would appreciate the info.

Cheers

TF

[icastle]

That's a 100KΩ log pot.

Something like this http://doctortweek.co.uk/shop/article_193/Potentiometer-%5BAlpha-Pot%5D-100k-(Log).html would do the job electronically, but you need to make sure that the shaft length is long enough and the right type.

[neepheid]

Not log, it's linear 100k pot, solid shaft, centre detent.

http://www.newoldsounds.com/index.php?main_page=product_info&products_id=11027

Edited February 10, 2014 by neepheid

[neepheid]

Also, if you want the real thing, have you tried contacting Fender GBI?

http://www.fender.com/en-GB/contact/

I would hope they could provide you with the part you need?

Also, what's the issue with getting it from the USA? Time? Taxes? http://www.ebay.co.uk/itm/390659569904 ?

[thefyst]

thanks for the replies, yeah i was hoping to have the part asap, a lot of the ebay listings say delivery could be several weeks. as far as i know there is know customs tax below a threshold of £15 ...might be wrong tho.

Newoldsounds may be an option but it still works out to about 11 quid and a 2 week wait just for a pot

Unfortunately i just realised the fender one is a 12 mm dia. and only just fits as it is. not convinced the 16 mm alpha pots would fit in.

[icastle]

[quote name='neepheid' timestamp='1392021723' post='2363558']
Not log, it's linear 100k pot, solid shaft, centre detent.
[/quote]

Of course it is - it says 'B'.
That's what comes from posting at silly o clock in the morning.

[neepheid]

[quote name='thefyst' timestamp='1392062007' post='2364286']
thanks for the replies, yeah i was hoping to have the part asap, a lot of the ebay listings say delivery could be several weeks. as far as i know there is know customs tax below a threshold of £15 ...might be wrong tho.

Newoldsounds may be an option but it still works out to about 11 quid and a 2 week wait just for a pot

Unfortunately i just realised the fender one is a 12 mm dia. and only just fits as it is. not convinced the 16 mm alpha pots would fit in.
[/quote]

Are you sure the body is 12mm? Is it this:



If the shaft is 6.3mm, the threaded part must be at least 9-10mm in diameter, looks like a 16mm body to me. You do get 12mm body pots, but they're not as common as 16 and 24.

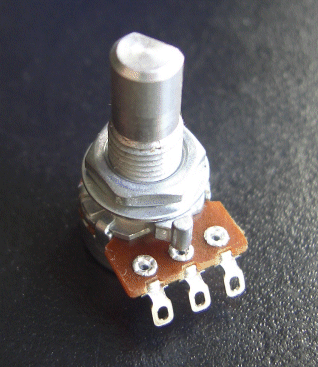

This is a 12mm pot for comparison:

[neepheid]

If the body size is 16 then although it's the wrong shaft type (split not solid) but might still do a job - 100k lin, 16mm, centre detent - in Germany. Have ordered stuff from them before (had to find a 1Meg reverse log pot for a G&L).

http://www.musikding.de/CTR-Pot-16mm-100k-lin-center-detent

[thefyst]

Yeah that looks like the right one, had to double check but its definately 12 mm.

gonna see if I can cram a 16mm one in tomorrow. probably got a spare cts one I can test it out with.

Edited February 10, 2014 by thefyst

[thefyst]

okie dokie just crammed a 16mm cts pot in there and its super snug but it goes in. Gonna go for the german website an see how that goes.

I requested postage as a letter rather than as a package...not sure how that will go... saved about a fiver tho

will report back in approx 5 days.

[thefyst]

Delivery was pretty quick, the pot was allmost an exact match apart from the shaft length wich was remedied with liberal application of the dremel
