BassTool Posted February 13, 2021 Share Posted February 13, 2021 That looks absolutely perfect, great job 👍🏼👌🏼 1 Quote Link to comment Share on other sites More sharing options...

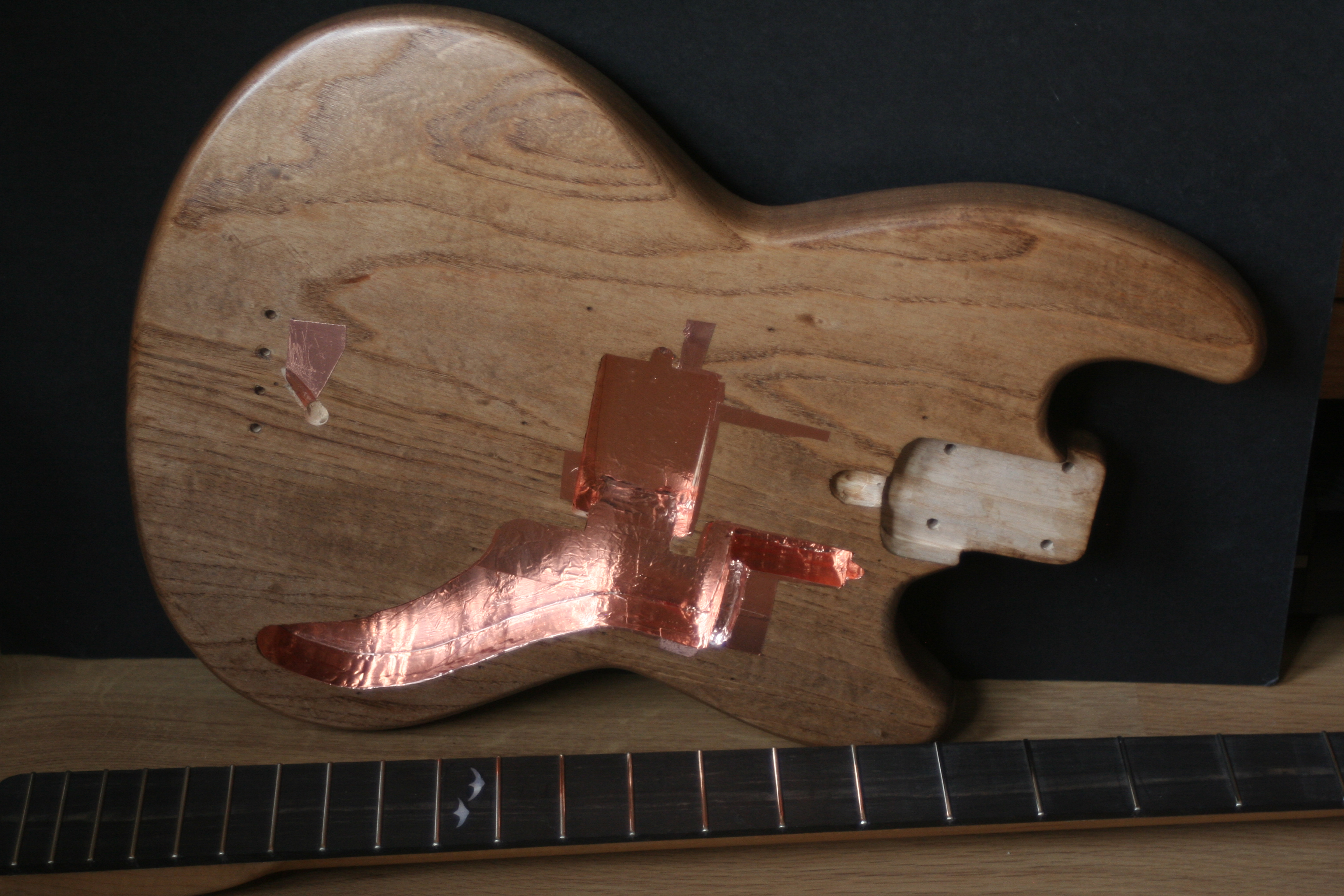

Andyjr1515 Posted February 15, 2021 Author Share Posted February 15, 2021 And the chambers are copper-foiled. I have to join the panels with a teeny wipe of solder ('conductive glue' isn't to be trusted) and then check the earth continuity. The bridge earth will be soldered inside the cutaway to the small patch of copper that will make great electrical contact with the bridge while maintaining a good, firm contact between the bridge and body. The apparently random tabs are positioned so that at least one is going to be firmly against the conductive layer on the bottom of the scratch plate assembly. I'm hoping that the black UNF hardware (custom order because of the sizes and thread, hence the leadtime) will be with me by the end of this week because I don't think it is that long now before it's time to start getting some strings on, trying it out and setting it up! 5 Quote Link to comment Share on other sites More sharing options...

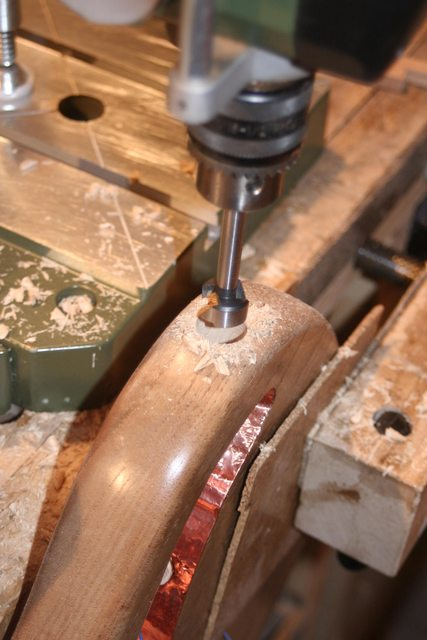

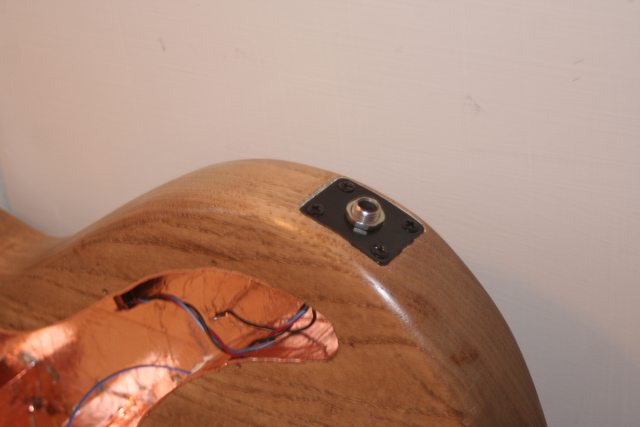

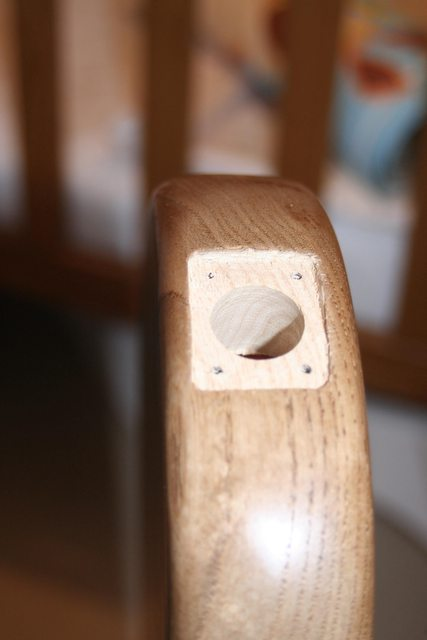

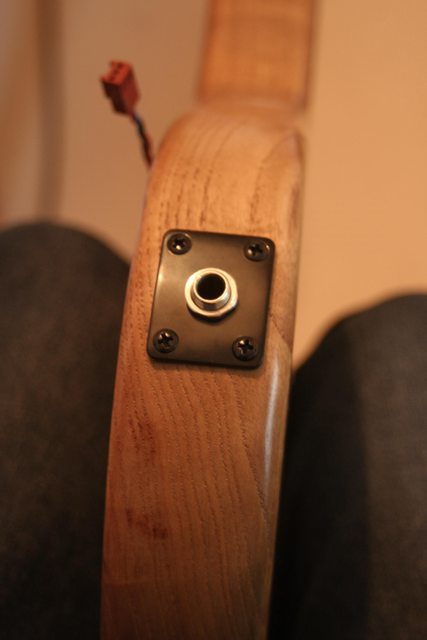

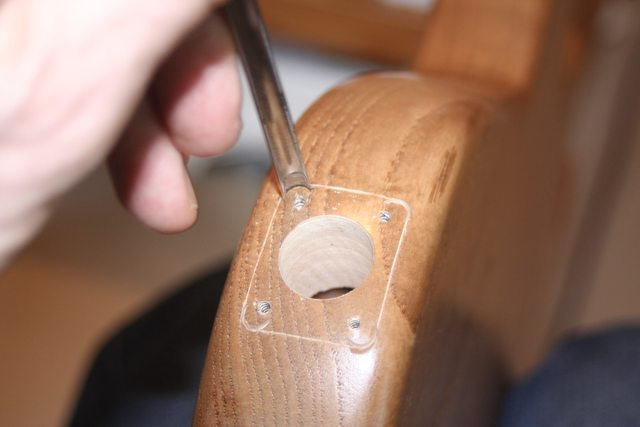

Andyjr1515 Posted February 19, 2021 Author Share Posted February 19, 2021 Starting to get ready for the assembly of the body components and electrics. I soldered the bridge earth wire so I didn't forget it and then turned my attention to the jack plate. First is the scarily large hole you have to bore to fit a standard-sized jack (the Wal is pre-wired with a connector and earth but it's still a standard switchcraft stereo jack): Then marked and drilled the screw fixing holes: Note the round nut. It isn't a rounded nut...it's a round nut with spanner flats machined - an 'everything is a going to be a bit different to the norm' step too far, perhaps? And this, of course, is how you would get your $8000 Les Paul Custom. But far, far too safe for Andyjr1515. So he's going to hit it with a chisel. 'Take that, you lump of wood!' : And then abuse it more with another couple of chisels: Still got to sand, stain and tru-oil the edges, but that's going to be better... Over the weekend, the plan is to get the scratchplate on and see if the 30+ year-old circuit still works 10 Quote Link to comment Share on other sites More sharing options...
MoonBassAlpha Posted February 19, 2021 Share Posted February 19, 2021 That's a big thumbs up from me. I commented on another thread about how much I like to see this done! 1 Quote Link to comment Share on other sites More sharing options...
MoonBassAlpha Posted February 19, 2021 Share Posted February 19, 2021 38 minutes ago, Andyjr1515 said: Starting to get ready for the assembly of the body components and electrics. I soldered the bridge earth wire so I didn't forget it and then turned my attention to the jack plate. First is the scarily large hole you have to bore to fit a standard-sized jack (the Wal is pre-wired with a connector and earth but it's still a standard switchcraft stereo jack): Then marked and drilled the screw fixing holes: Note the round nut. It isn't a rounded nut...it's a round nut with spanner flats machined - an 'everything is a going to be a bit different to the norm' step too far, perhaps? And this, of course, is how you would get your $8000 Les Paul Custom. But far, far too safe for Andyjr1515. So he's going to hit it with a chisel. 'Take that, you lump of wood!' : And then abuse it more with another couple of chisels: Still got to sand, stain and tru-oil the edges, but that's going to be better... Over the weekend, the plan is to get the scratchplate on and see if the 30+ year-old circuit still works BTW, I have a hand sketched circuit diagram for the Wal preamp somewhere if you run into trouble. 1 Quote Link to comment Share on other sites More sharing options...
Rich Posted February 19, 2021 Share Posted February 19, 2021 @MoonBassAlpha is it the same as this one? 2 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted February 19, 2021 Author Share Posted February 19, 2021 Given my capability with electronics, I think the reality is, in the unlikely event that it doesn't work, that it would need to be sent to someone who knows what they are doing. I know I don't really know what I'm doing with the building stuff...but I REALLY don't know what I'm doing with electronics 5 Quote Link to comment Share on other sites More sharing options...
Rich Posted February 19, 2021 Share Posted February 19, 2021 55 minutes ago, Andyjr1515 said: I don't really know what I'm doing with the building stuff That is the single most preposterous thing I have read all day. 2 1 Quote Link to comment Share on other sites More sharing options...
Richard R Posted February 19, 2021 Share Posted February 19, 2021 (edited) 1 hour ago, Andyjr1515 said: I know I don't really know what I'm doing with the building stuff. Off to the Famous quotes thread! Edited February 19, 2021 by Richard R 4 Quote Link to comment Share on other sites More sharing options...

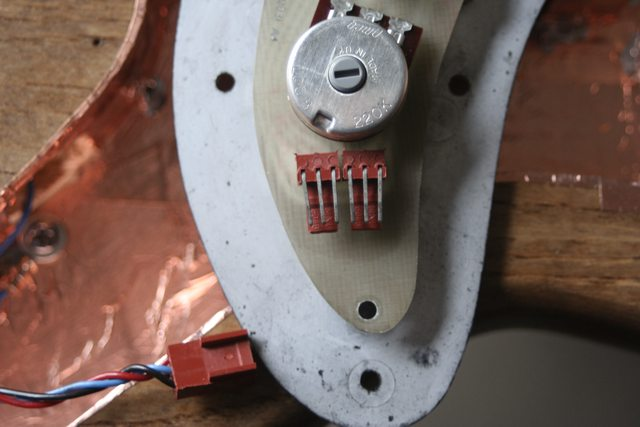

Andyjr1515 Posted February 20, 2021 Author Share Posted February 20, 2021 A quick call to @Rich ; @MoonBassAlpha or anyone else wot knows. I'm just about to do a 'tap' test of the pickup now that everything is grounded, etc.. The circuit board has two outputs to the jack connector: I'm assuming that they are both the same and I can choose either one? Quote Link to comment Share on other sites More sharing options...
Hellzero Posted February 20, 2021 Share Posted February 20, 2021 Check the continuity from the volume pot to the pins and you'll find where it goes. 1 Quote Link to comment Share on other sites More sharing options...
Rich Posted February 20, 2021 Share Posted February 20, 2021 (edited) 1 hour ago, Andyjr1515 said: A quick call to @Rich ; @MoonBassAlpha or anyone else wot knows. I'm just about to do a 'tap' test of the pickup now that everything is grounded, etc.. The circuit board has two outputs to the jack connector: I'm assuming that they are both the same and I can choose either one? What you're looking there is this part of the circuit diagram: I think you want the right hand half as shown in your pic but I couldn't say for definite without taking my Pro 2E to bits and, errm, no You cant do any damage by plugging into the wrong bit, you just won't hear anything I'm assuming it doesnt have the hens-teeth optional DI kit fitted? I'll be very jealous if it does. I dream of getting my hands on one. Edited February 20, 2021 by Rich 2 Quote Link to comment Share on other sites More sharing options...
Si600 Posted February 20, 2021 Share Posted February 20, 2021 (edited) Lick it and see which end tingles? Edited February 20, 2021 by Si600 7 Quote Link to comment Share on other sites More sharing options...
Jabba_the_gut Posted February 20, 2021 Share Posted February 20, 2021 (edited) Does this help?? Found on Wal pro 1 e neck rebuild – Unicornbass Edited February 20, 2021 by Jabba_the_gut 2 2 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted February 20, 2021 Author Share Posted February 20, 2021 34 minutes ago, Jabba_the_gut said: Does this help?? Found on Wal pro 1 e neck rebuild – Unicornbass Yes! I did the continuity check as suggested by @Hellzero , I took the 'you can't do any damage' approach as muted by @Rich , plugged it in and tested it and then saw @Jabba_the_gut 's photo link and that is exactly where I'd plugged it Great team work And we have taps, folks So I can now fully assemble the body and then just have to wait for the neck bolts to start the set-up process Many thanks, folks, much appreciated 6 Quote Link to comment Share on other sites More sharing options...
Hellzero Posted February 20, 2021 Share Posted February 20, 2021 But you forgot @Si600 approach ! 😎 2 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted February 20, 2021 Author Share Posted February 20, 2021 1 hour ago, Si600 said: Lick it and see which end tingles? When I was but a lad, we used to lick the terminals of batteries for the magic of being able to 'taste' the electricity. The 9v cells were always the best because they gave the best tingle. So - the 11 year-old Andyjr1515 thought - the 12v Scalextric track runs should taste even better. Let's just say that sherbert didn't taste the same for about 5 years... 10 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted February 20, 2021 Author Share Posted February 20, 2021 3 minutes ago, Hellzero said: But you forgot @Si600 approach ! 😎 See above. Advice duly gratefully received and firmly rejected Quote Link to comment Share on other sites More sharing options...
Rich Posted February 20, 2021 Share Posted February 20, 2021 1 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted February 20, 2021 Author Share Posted February 20, 2021 Just now, Rich said: You were there! Honestly, that is how it felt. Absolute shocker in all respects.... Quote Link to comment Share on other sites More sharing options...
Hellzero Posted February 20, 2021 Share Posted February 20, 2021 Did you try pissing on an electric fence as the next level ? 🤪 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted February 20, 2021 Author Share Posted February 20, 2021 Just now, Hellzero said: Did you try pissing on an electric fence as the next level ? 🤪 Happily, of the two experiments on my list of 'cool things to try', the licking the Scalextric track was first on the list... 2 Quote Link to comment Share on other sites More sharing options...
paul_5 Posted February 20, 2021 Share Posted February 20, 2021 7 minutes ago, Hellzero said: Did you try pissing on an electric fence as the next level ? 🤪 2 Quote Link to comment Share on other sites More sharing options...
Si600 Posted February 20, 2021 Share Posted February 20, 2021 32 minutes ago, Andyjr1515 said: Yes! I did the continuity check as suggested by @Hellzero , I took the 'you can't do any damage' approach as muted by @Rich , plugged it in and tested it and then saw @Jabba_the_gut 's photo link and that is exactly where I'd plugged it Great team work And we have taps, folks So I can now fully assemble the body and then just have to wait for the neck bolts to start the set-up process Many thanks, folks, much appreciated What's the other side that doesn't have a plug on it? Apropos whizzing on the electric fence, Mythbusters, IIRC, did just that. Apparently the stream separates into droplets long before it gets to the fence. 1 Quote Link to comment Share on other sites More sharing options...
itu Posted February 20, 2021 Share Posted February 20, 2021 1 hour ago, Si600 said: What's the other side that doesn't have a plug on it? It's the XLR out. You can see the transformer connected to the terminals in the schema. That's symmetric signal, i.e. DI out. 1 Quote Link to comment Share on other sites More sharing options...
