Fishman Posted December 12, 2020 Share Posted December 12, 2020 Nice lighting in the last pic Andy 📸 Quote Link to comment Share on other sites More sharing options...
Daz39 Posted December 12, 2020 Share Posted December 12, 2020 2 hours ago, songofthewind said: Fine forensic luthiery! Try saying that after xmas drinks! 1 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted December 12, 2020 Author Share Posted December 12, 2020 2 hours ago, Fishman said: Nice lighting in the last pic Andy 📸 I call that my 'cellar by desklight' look. I believe Dulux are interested 4 Quote Link to comment Share on other sites More sharing options...
Si600 Posted December 12, 2020 Share Posted December 12, 2020 4 hours ago, songofthewind said: Fine forensic luthiery! Told you, the Doyen of Build Diaries. 1 Quote Link to comment Share on other sites More sharing options...
Mykesbass Posted December 12, 2020 Share Posted December 12, 2020 1 hour ago, Andyjr1515 said: I call that my 'cellar by desklight' look. I believe Dulux are interested One for the teenagers 😄 1 Quote Link to comment Share on other sites More sharing options...

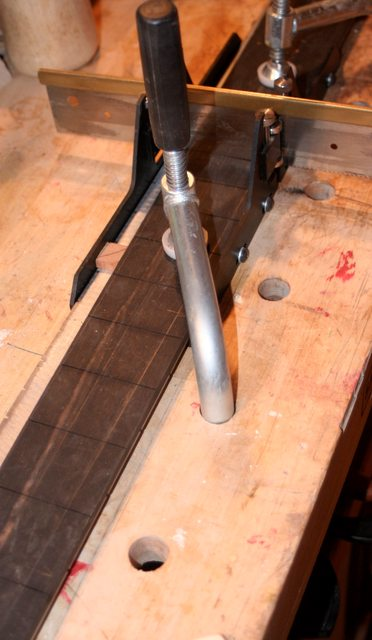

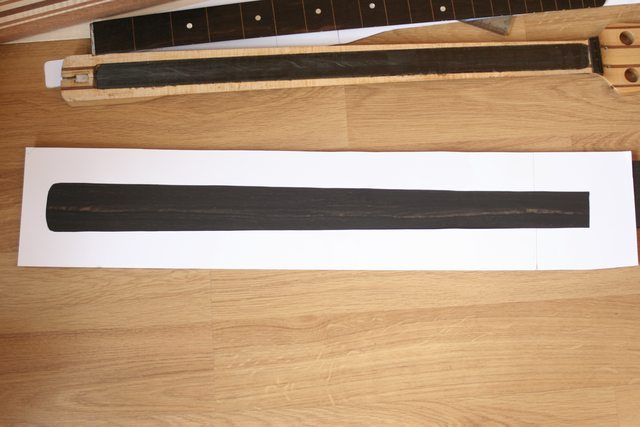

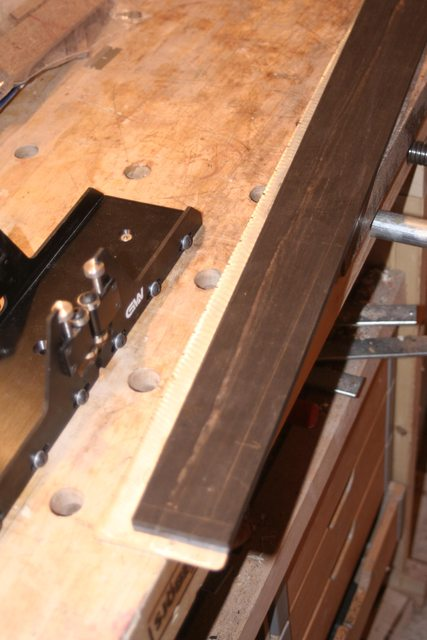

Andyjr1515 Posted December 14, 2020 Author Share Posted December 14, 2020 (edited) There's a feature line running through the fretboard blank that @Fishman would like to incorporate in the final fretboard. Trouble is, it is quite diagonal across the blank. We looked at a number of orientations using a template from the original board and came up with this as the closest we could get for the feature being centre-ish at both the heel and the nut: With this agreed, I could then cut one of the sides of the blank to give me a 90 degree datum for the fret slots. I also thicknessed the board down to around 5.8mm. That done, I attached the blank to the G&W mitre block 34" template: And then I could start sawing the slots. Here's about half-way through. I'll finish off tomorrow. Edited December 14, 2020 by Andyjr1515 6 Quote Link to comment Share on other sites More sharing options...

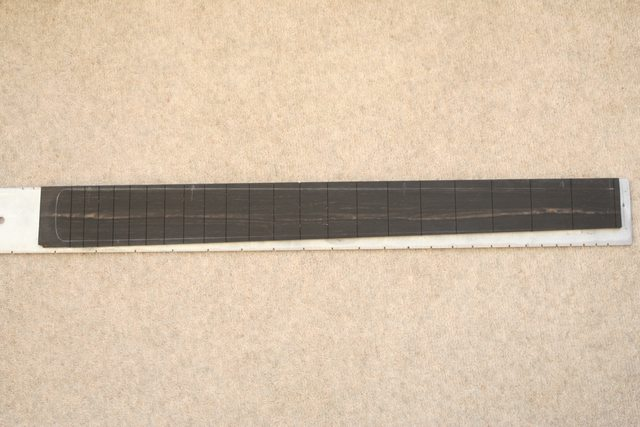

Andyjr1515 Posted December 15, 2020 Author Share Posted December 15, 2020 And all the fretslots are done The bottom right edge is the edge of the board. You can just see the pencil mark for where the nut will come to once it's been cut to final taper. It's going to have no dots on the top (just some luminlays on the side) but just a couple of mother of pearl swifts at the 12th. I'll do that while it's still on the fretting template so it doesn't move around as I'm dremel-routing for the inlays. So this afternoon, mask on, jewellers saw out and time to cut a couple of swifts 7 Quote Link to comment Share on other sites More sharing options...

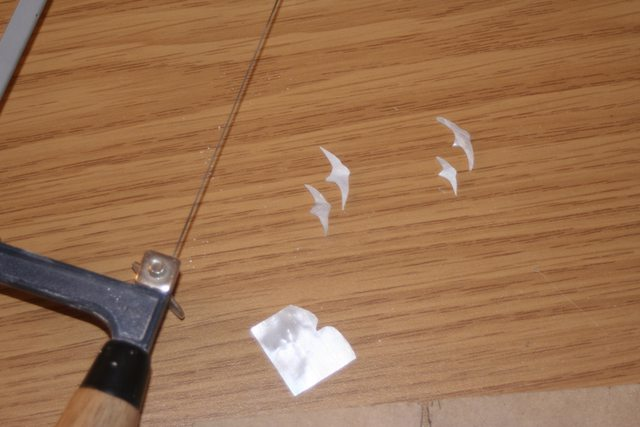

Andyjr1515 Posted December 15, 2020 Author Share Posted December 15, 2020 And here they are: I've done two pairs. I'm pretty sure that @Jus Lukin wants a completely plain board and just side dots on his headless build, but, while I had the folding table out and cutting rest clamped to it, it was almost as quick to do a second pair at the same time just in case or for another future build. Along the same efficiency drive (don't worry, I'm sure that won't last long), then while the fret-slot mitre block I've just used for @Fishman 's board is still screwed to the workbench, I will hand mark the fret positions for @Jus Lukin 's 30" scale (I don't have a template for 30") and cut the slots on his board. For this Wal project, then tomorrow morning - when I have a bit of daylight to be able to see the pencil marks on the ebony fretboard - I'll pencil round two of the inlays, rout the recesses and fit them onto the board 6 Quote Link to comment Share on other sites More sharing options...

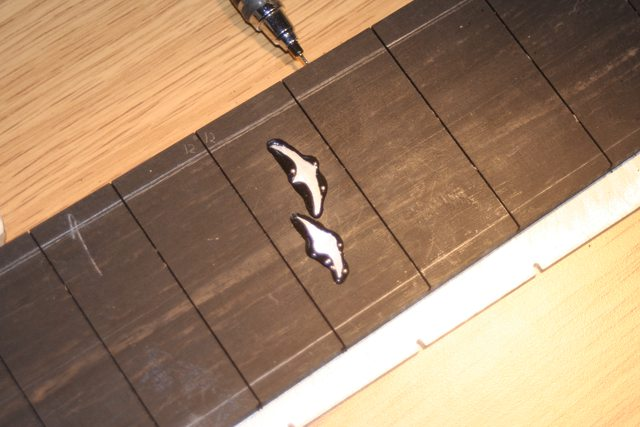

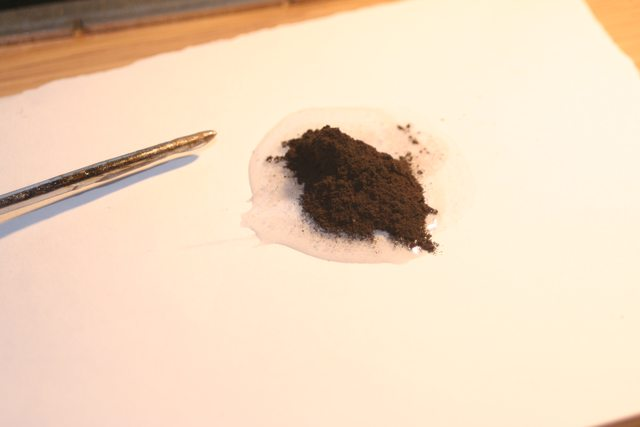

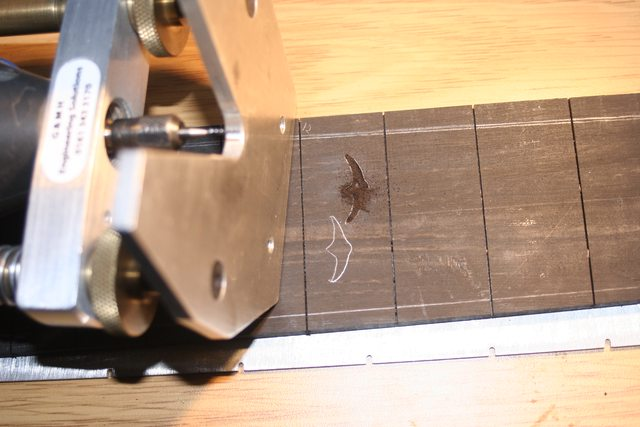

Andyjr1515 Posted December 16, 2020 Author Share Posted December 16, 2020 Putting the inlays in was normal method. Started with a pencilled outline of the inlay and then my Dremel with a 1mm bit in the precision router base, plenty of light, frequent vacuuming and a very steady hand Then mixed a generous amount of collected ebony sanding dust with some Z-poxy epoxy resin and filled the chambers with the mix: Then pressed the inlays , forcing the black epoxy out, and hence gluing them in and sealing and filling any gaps at the same time: And when that's fully cured they will be sanded flat at the same time as the pre-fretting sanding of the board itself. Nickel silver fretwire is on its way and, while all the fretboard stuff is out, I'll get on with a similar process with @Jus Lukin 's headless build 9 Quote Link to comment Share on other sites More sharing options...

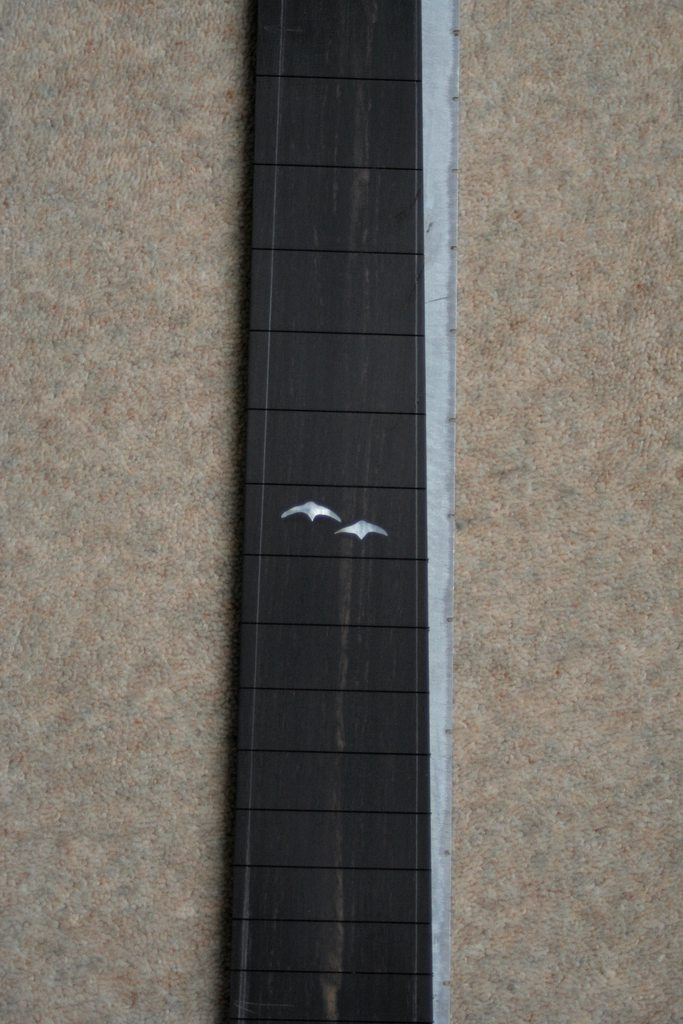

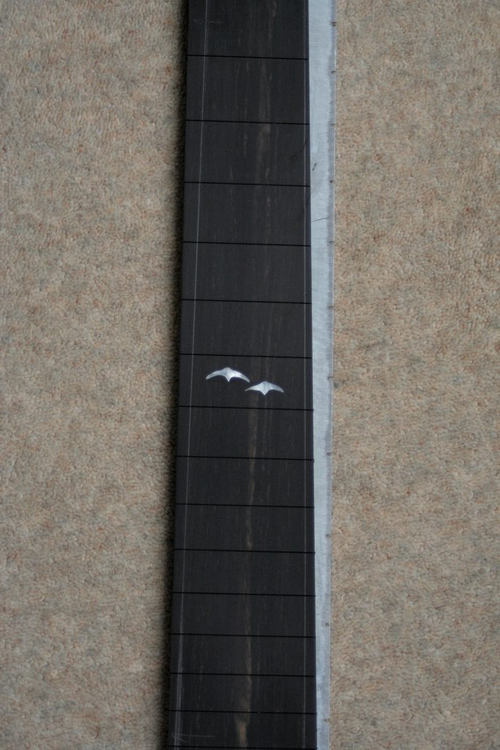

Andyjr1515 Posted December 16, 2020 Author Share Posted December 16, 2020 So last photo before turning my attention back to the headless for a few days - the finished swifts: 10 Quote Link to comment Share on other sites More sharing options...
Swaff Posted December 16, 2020 Share Posted December 16, 2020 Can't wait to see the end result on this one. What an interesting project, thanks as always for sharing the process involved! 1 Quote Link to comment Share on other sites More sharing options...
fleabag Posted December 16, 2020 Share Posted December 16, 2020 Beautiful work again Andy 1 Quote Link to comment Share on other sites More sharing options...
Fishman Posted December 16, 2020 Share Posted December 16, 2020 Swifts in flight against the jet-trail – amazing! 1 Quote Link to comment Share on other sites More sharing options...
BassTool Posted December 20, 2020 Share Posted December 20, 2020 Haway man Andy, pack in wrapping pressies and crack on with this will ya! I'm getting withdrawal symptoms here... 😝 2 Quote Link to comment Share on other sites More sharing options...
Andyjr1515 Posted December 20, 2020 Author Share Posted December 20, 2020 5 minutes ago, BassTool said: Haway man Andy, pack in wrapping pressies and crack on with this will ya! I'm getting withdrawal symptoms here... 😝 At the moment it's looking like all the presents are wrapped and no-one going to be there to give them to! 1 Quote Link to comment Share on other sites More sharing options...
NickA Posted December 22, 2020 Share Posted December 22, 2020 Still wondering how @fishman came upon a pro 1e without its body or bridge! That carbon strip in the neck btw is unique to early Wals. The customs, mk1s, 2s, 3s and pro 1 reissues don't have it. The necks changed from hornbeam, mahogany and maple to just mahogany and maple at some point too. "Engineered" indeed. Quote Link to comment Share on other sites More sharing options...
Fishman Posted December 22, 2020 Share Posted December 22, 2020 9 hours ago, NickA said: Still wondering how @fishman came upon a pro 1e without its body or bridge! I could tell you but that would spoil the fun! 😊 1 Quote Link to comment Share on other sites More sharing options...
Owen Posted December 22, 2020 Share Posted December 22, 2020 I think Fishman had the whole thing but got all Hendrix at the end of a gig. 2 Quote Link to comment Share on other sites More sharing options...
LukeFRC Posted December 22, 2020 Share Posted December 22, 2020 I think a divorce settlement meant they each kept a half? 2 Quote Link to comment Share on other sites More sharing options...
Mykesbass Posted December 22, 2020 Share Posted December 22, 2020 3 minutes ago, LukeFRC said: I think a divorce settlement meant they each kept a half? Someone ended up with a splendid bread board. 1 1 Quote Link to comment Share on other sites More sharing options...
Fishman Posted December 22, 2020 Share Posted December 22, 2020 What really happened was mice nibbled away at the body over a period of months while it was in storage, it was so badly damaged that I took the thing apart and left them to finish the body 2 Quote Link to comment Share on other sites More sharing options...
HazBeen Posted December 22, 2020 Share Posted December 22, 2020 Lovely! Quote Link to comment Share on other sites More sharing options...
Fishman Posted December 22, 2020 Share Posted December 22, 2020 (edited) Oh yeah, they ate the bridge too 😢 Edited December 22, 2020 by Fishman 1 Quote Link to comment Share on other sites More sharing options...
BassBus Posted December 22, 2020 Share Posted December 22, 2020 41 minutes ago, Fishman said: What really happened was mice nibbled away at the body over a period of months while it was in storage, it was so badly damaged that I took the thing apart and left them to finish the body 7 minutes ago, Fishman said: Oh yeah, they ate the bridge too 😢 As some people might say in Scotland; "Aye, right". 😄 1 Quote Link to comment Share on other sites More sharing options...
TheGreek Posted December 22, 2020 Share Posted December 22, 2020 Found this image again 2 Quote Link to comment Share on other sites More sharing options...
